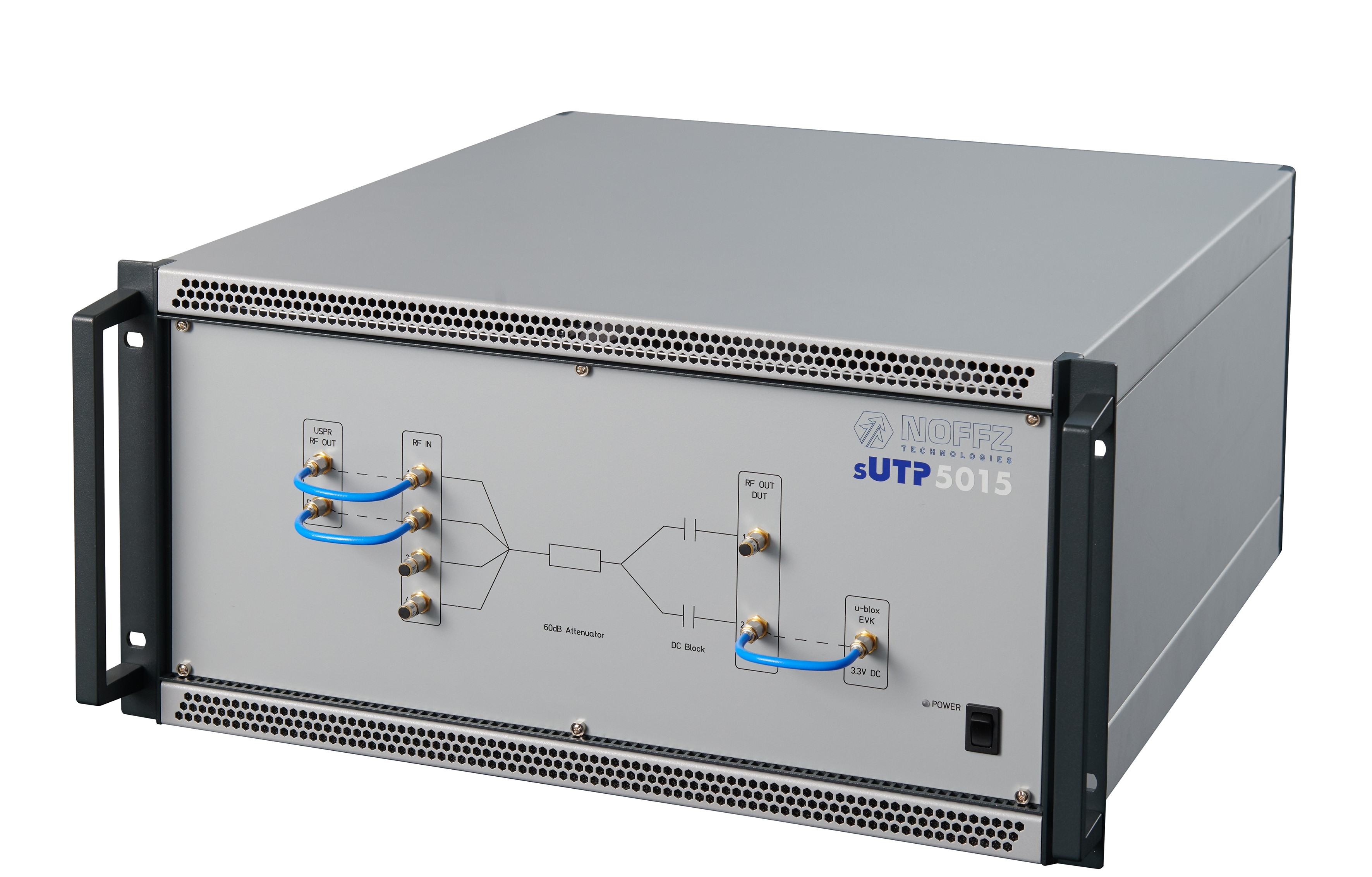

sUTP 5015 AT A GLANCE

Our sUTP 5015 turnkey solution consists of a modular Skydel GNSS software simulation combined with high end hardware components for running real-time individual signal simulations. The integrated Scenario Editor allows free definition of trajectories in up to 6 Degrees of Freedom. It supports differential GNSS and multi-vehicle simulation, GNSS satellite orbit modification, unlimited pseudorange additive ramps and custom fixed positions.

The system can be used as a desktop unit or as 19” rack integration. It is equipped with a 2-port Software Defined Radio (SDR) and can easily extended  and cascaded with extension modules to add further synchronized SDR´s.

  • Including PC, high end g raphic card,Software defined radio …
  • 1000 Hz simulation update rate
  • Integrated maps for flexible andintuitive scenario creation
  • Import NMEA, KML (Google), or CSV Files
  • High dynamics
  • Open source remote API for easy automation in multiple programming languages
  • Satellite orbit modification and custom fixed position
  • Navigation message modification and corruption
  • Interference generation and injection in GNSS signals
  • File formats: CSV, KML, NMEA, etc.
  • Powerful automation & intuitive API (Python, C# and C++ open source client)
  • Runs on Linux and Windows

Downloads:

pdf-download Product Datasheet

TECHNICAL DATA

 sUTP 5015
Mechanics
Housing450x222x495 (WxHxD) 5RU
Weight14 Kg
Power supply
Input voltage100-240 VAC
Input current8.0 A (Max.)
Input fuseRV/CB C16 30mA
Input / Output Interfaces
InputsIEC Socket
3 x USB 3.0
1 x 1 Gbit Eth.
1 x 10 Gbit Eth. (optional)
2 x RF In (SMA jack, for additional sources)
1 x RF In (SMA jack, GNSS evaluation unit)
1 x USRP Trig In, 1 x USRP Ref In
Outputs1 x HDMI
2 x RF DUT (SMA jack, identical signal)
Provided signals
Basic satellite signalsGPS L1 C/A, L2C, L5, P-Code, SBAS
GLONASS G1 / G2
Galileo E1 / E5 / Altboc
BeiDou B1 / B2
Signal manipulationAdvanced Jamming, Interference /Jamming with CW, Chirp, Pulse, BPSK, BOC, AGWN, Spoofing, Multipath
Further signal optionsMulti Instance option
Anechoic Chamber multi antenna installation
Simulation possibilitiesSingle antenna, single vehicle
Multi antenna, multi vehicle
HIL, RTK
